2W Output Power Portable License Free Two Way Radio For Daily Use
-Compact, lightweight but rugged design
-IP54 rating splash and dust proof
-Shatterproof hidden segmented LED display
-1700mAh Li-ion battery and life up to 40 hours
-10 levels digital volume adjustment
-Type-C USB port to recharge the battery
-99 programmable channels
-38 CTCSS tones & 83 DCS codes in TX and RX
-High/low output power selectable
-Built-in VOX for hands-free communications
-Easy pairing for simple group call set-up
-PC programmable
- Dimensions: 98H x 55W x 31D mm
- Weight (with battery & antenna):175g

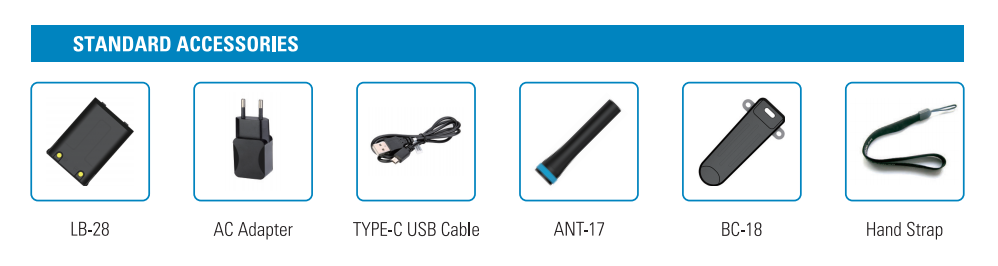

1 x FT-28 radio
1 x High gain antenna ANT-17
1 x Rechargeable Li-ion battery pack LB-28
1 x AC adapter
1 x TYPE-C USB cable
1 x Belt clip & hand strap BC-18
1 x User guide
General
| Frequency |
LPD:433MHz/PMR: 446MHz |
FRS/GMRS:462-467MHz |
| Channel Capacity |
99 channels |
|
| Power Supply |
3.7V DC |
|
| Dimensions (without belt clip and antenna) |
98mm (H) x 55mm (W) x 31mm (D) |
|
| Weight (with battery and antenna) |
175g |
|
Transmitter
| RF Power |
LPD/PMR: 500mW |
FRS:500mW/GMRS: 2W |
| Channel Spacing |
12.5kHz |
|
| Frequency Stability (-30°C to +60°C) |
±1.5ppm |
|
| Modulation Deviation |
≤ 2.5kHz |
|
| Spurious & Harmonics |
-36dBm < 1GHz, -30dBm>1GHz |
|
| FM Hum & Noise |
-40dB |
|
| Adjacent Channel Power |
≥ 60dB |
|
| Audio Frequency Response
(Premphasis, 300 to 3000Hz) |
+1 ~ -3dB |
|
| Audio Distortion
@ 1000Hz, 60% Rated Max. Dev. |
< 5% |
|
Receiver
| Sensitivity (12 dB SINAD) |
≤ 0.25μV |
| Adjacent Channel Selectivity |
-60dB |
| Audio Distortion |
< 5% |
| Radiated Spurious Emissions |
-54dBm |
| Intermodulation Rejection |
-70dB |
| Audio Output @ < 5% Distortion |
1W |
-
SAMCOM FT-28 Data Sheet -
SAMCOM FT-28 User Guide
-
SAMCOM FT-28 CPS
