Compact Business Radio For Professional Environment
- Compact, lightweight but rugged design
- IP54 rating splash and dust proof
- 1700mAh Li-ion battery and life up to 48 hours
- 16 programmable channels
- 50 CTCSS tones & 210 DCS codes in TX and RX
- High/low output power selectable
- Built-in VOX for hands-free communications
- Voice prompt
- Roger beep
- Monitor function
- Channels scan
- Battery saver
- Emergency alarm
- Time-out timer
- Busy channel lock-out
- PC programmable
- Dimensions: 98H x 55W x 30D mm
- Weight (with battery & antenna): 170g

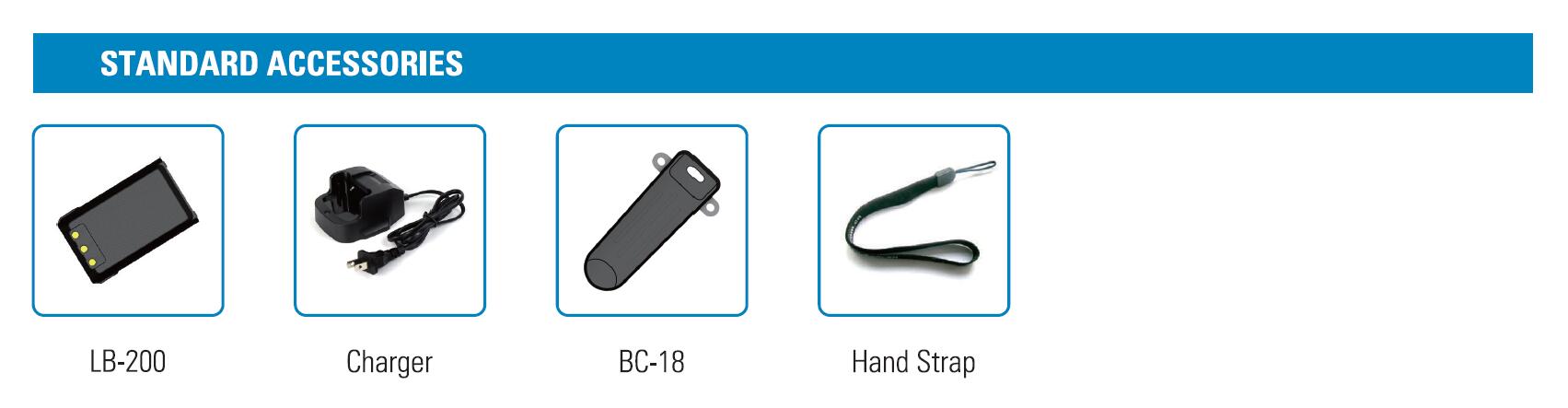

1 x CP-200 radio
1 x Li-ion battery pack LB-200
1 x High gain antenna ANT-200
1 x Desktop charger kit CA-200
1 x Belt clip BC-18
1 x Hand Strap
1 x User guide
General
| Frequency |
UHF: 433 / 446 / 400-480MHz |
| Channel Capacity |
16 channels |
| Power Supply |
3.7V DC |
| Dimensions (without belt clip and antenna) |
98mm (H) x 55mm (W) x 30mm (D) |
| Weight (with battery and antenna) |
170g |
Transmitter
| RF Power |
0.5W / 2W |
| Channel Spacing |
12.5 / 25kHz |
| Frequency Stability (-30°C to +60°C) |
±1.5ppm |
| Modulation Deviation |
≤ 2.5kHz / ≤ 5kHz |
| Spurious & Harmonics |
-36dBm < 1GHz, -30dBm>1GHz |
| FM Hum & Noise |
-40dB / -45dB |
| Adjacent Channel Power |
≥ 60dB / 70dB |
| Audio Frequency Response(Premphasis, 300 to 3000Hz) |
+1 ~ -3dB |
| Audio Distortion@ 1000Hz, 60% Rated Max. Dev. |
< 5% |
Receiver
| Sensitivity (12 dB SINAD) |
≤ 0.25μV / ≤ 0.35μV |
| Adjacent Channel Selectivity |
-60dB / -70dB |
| Audio Distortion |
< 5% |
| Radiated Spurious Emissions |
-54dBm |
| Intermodulation Rejection |
-70dB |
| Audio Output @ < 5% Distortion |
1W |
-
