CP-480 Professional Two-Way Radio – Rugged, Reliable, and Ready for Business
The CP-480 is built to keep your team connected in even the toughest conditions. With an IP55-rated rugged design, it withstands dust, splashes, and demanding work environments. Its ultra-loud audio and 48-hour battery life ensure clear, uninterrupted communication—ideal for construction, security, or logistics teams. Advanced features like hands-free VOX, emergency alerts, and programmable channels streamline operations while keeping safety a priority. Durable, powerful, and business-ready, the CP-480 delivers professional-grade performance when it matters most.

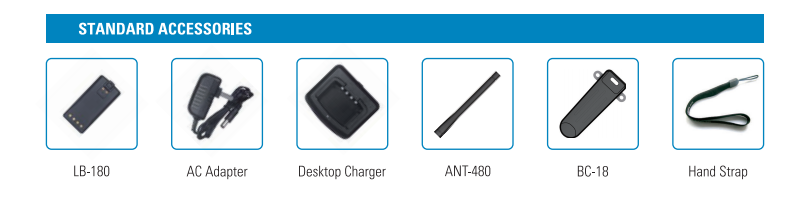

1 x CP-480 radio
1 x Li-ion battery pack LB-180
1 x High gain antenna ANT-480
1 x AC adapter
1 x Desktop charger
1 x Belt clip & hand strap BC-18
1 x User guide
General
| Frequency |
VHF: 136-174MHz |
UHF: 400-480MHz |
| Channel Capacity |
16 channels |
|
| Power Supply |
7.4V DC |
|
| Dimensions (without belt clip and antenna) |
112mm (H) x 57mm (W) x 33mm (D) |
|
| Weight (with battery and antenna) |
240g |
|
Transmitter
| RF Power |
1W/5W |
1W/4W |
| Channel Spacing |
12.5 / 25kHz |
|
| Frequency Stability (-30°C to +60°C) |
±1.5ppm |
|
| Modulation Deviation |
≤ 2.5kHz / ≤ 5kHz |
|
| Spurious & Harmonics |
-36dBm < 1GHz, -30dBm>1GHz |
|
| FM Hum & Noise |
-40dB / -45dB |
|
| Adjacent Channel Power |
≥ 60dB / 70dB |
|
| Audio Frequency Response
(Premphasis, 300 to 3000Hz) |
+1 ~ -3dB |
|
| Audio Distortion
@ 1000Hz, 60% Rated Max. Dev. |
< 5% |
|
Receiver
| Sensitivity (12 dB SINAD) |
≤ 0.25μV / ≤ 0.35μV |
| Adjacent Channel Selectivity |
-60dB / -70dB |
| Audio Distortion |
< 5% |
| Radiated Spurious Emissions |
-54dBm |
| Intermodulation Rejection |
-70dB |
| Audio Output @ < 5% Distortion |
1W |
-
