High Power Two Way Radio For Long Range Communication
- IP55 rating water resistance & dust protection
- Rugged and heavy-duty design
- Crisp, clear and high quality sound
- 2600mAh rechargeable Li-ion battery pack
- 16 programmable channels
- CTCSS & DCS encode and decode
- Lone worker mode
- Emergency alarm
- PTT ID / DTMF-ANI
- Low battery alert
- Voice annunicator
- Inbuilt VOX for hands-free communication
- Channels and priority scanning
- High/low RF power selectable
- Battery save
- Time-out timer
- Busy channel lock-out
- SQL levels setting
- Repeater / Talk around
- PC programmable
- Dimensions: 112H x 57W x 35D mm
- Weight (with battery & antenna): 280g

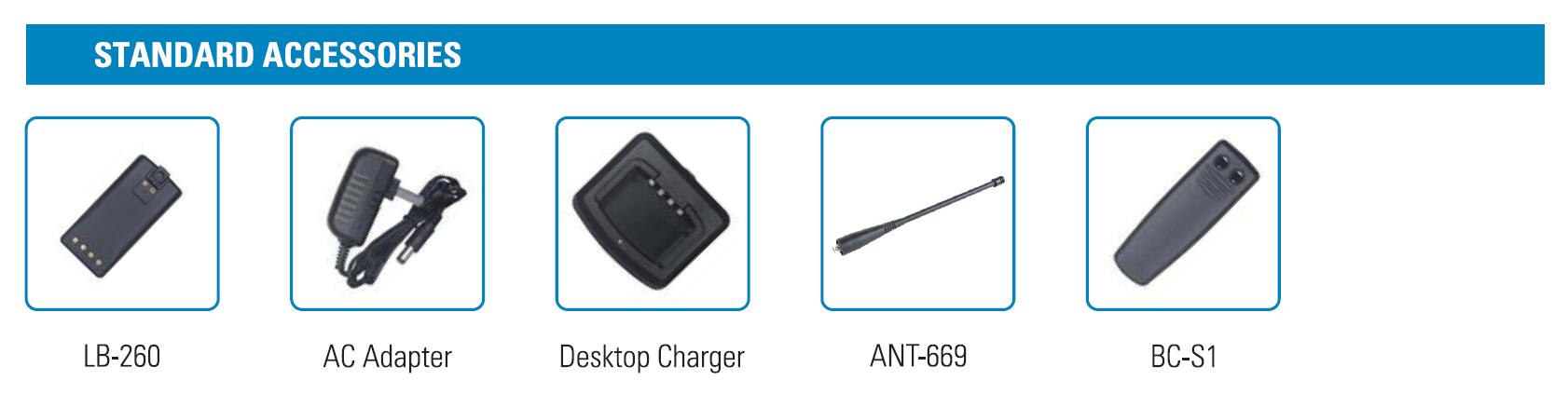

1 x CP-800 radio
1 x Li-ion battery pack LB-260
1 x High gain antenna ANT-669
1 x AC adapter
1 x Desktop charger CA-10
1 x Belt clip BC-S1
1 x User guide
General
| Frequency |
VHF: 136-174MHz |
UHF: 400-480MHz |
| Channel Capacity |
16 channels |
|
| Power Supply |
7.4V DC |
|
| Dimensions (without belt clip and antenna) |
112mm (H) x 57mm (W) x 35mm (D) |
|
| Weight (with battery and antenna) |
280g |
|
Transmitter
| RF Power |
2W / 8W |
2W / 7W |
| Channel Spacing |
12.5 / 25kHz |
|
| Frequency Stability (-30°C to +60°C) |
±1.5ppm |
|
| Modulation Deviation |
≤ 2.5kHz / ≤ 5kHz |
|
| Spurious & Harmonics |
-36dBm < 1GHz, -30dBm>1GHz |
|
| FM Hum & Noise |
-40dB / -45dB |
|
| Adjacent Channel Power |
≥ 60dB / 70dB |
|
| Audio Frequency Response(Premphasis, 300 to 3000Hz) |
+1 ~ -3dB |
|
| Audio Distortion@ 1000Hz, 60% Rated Max. Dev. |
< 5% |
|
Receiver
| Sensitivity (12 dB SINAD) |
≤ 0.25μV / ≤ 0.35μV |
| Adjacent Channel Selectivity |
-60dB / -70dB |
| Audio Distortion |
< 5% |
| Radiated Spurious Emissions |
-54dBm |
| Intermodulation Rejection |
-70dB |
| Audio Output @ < 5% Distortion |
1W |
-
